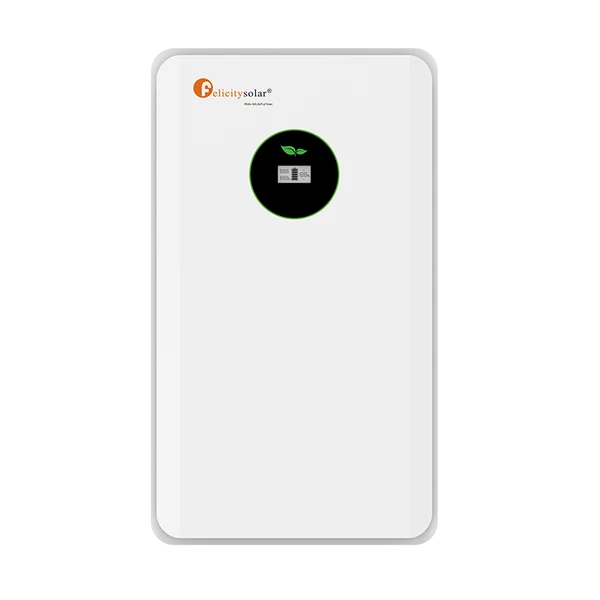

10kWh 48V Felicity Lithium Battery

Product Features

• High-safety LiFePO₄ chemistry with excellent thermal stability.
• 10kWh usable storage suitable for homes, offices, and commercial systems.
• Built-in Smart BMS with protections for voltage, temperature, current, and short-circuit events.
• Supports up to 15 units in parallel (150kWh total).
• RS485 / CAN communication compatible with leading inverter brands.
• LCD + LED display for SOC, voltage, current, and fault codes.
• Flexible installation: wall-mounted or floor-mounted.
• Integrated WiFi for remote monitoring and diagnostics.
• Long service life exceeding 6,000 cycles at 80% DOD.

Specifications

• Model: FLA48200
• Usable Capacity: 10kWh
• Battery Type: LiFePO₄
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8–57.6V
• Recommended Charge/Discharge Current: ≤120A
• Recommended Charge/Discharge Power: ≤6,000W
• Maximum Charge/Discharge Current (15s): 150A
• Maximum Charge/Discharge Power (15s): 7,500W
• Depth of Discharge (DOD): ≥95%
• Scalability: Up to 15 units (150kWh)
• Communication: RS485 / CAN
• Protection Level: IP21
• Cycle Life: ≥6,000 Cycles
• Charging Temperature: 0–55°C
• Discharging Temperature: –20–55°C
• Display: LCD + LED
• Installation: Wall-Mounted / Floor-Mounted
• Protection: Smart BMS, Breaker, Fuse
• Net Weight: 68kg
• Gross Weight: 88kg
• Product Dimensions: 735 × 433 × 188 mm
• Package Dimensions: 849 × 550 × 362 mm
• Warranty: 7 Years

What’s in the Box

• 1 × 10kWh Felicity Lithium Battery
• 1 × RS485 Cable
• 1 × PCS Communication Cable
• 1 × Parallel Battery Cable (35mm²)
• 1 × Wall Mount Kit
• 1 × User Manual
• 1 × Warranty Card

System Overview

• Suitable for medium-to-large home solar systems and business backup.
• Parallel expandable up to 150kWh for high-demand environments.
• Smart BMS ensures safe and consistent performance.
• Compatible with MPPT chargers and hybrid/off-grid inverters via RS485/CAN.
