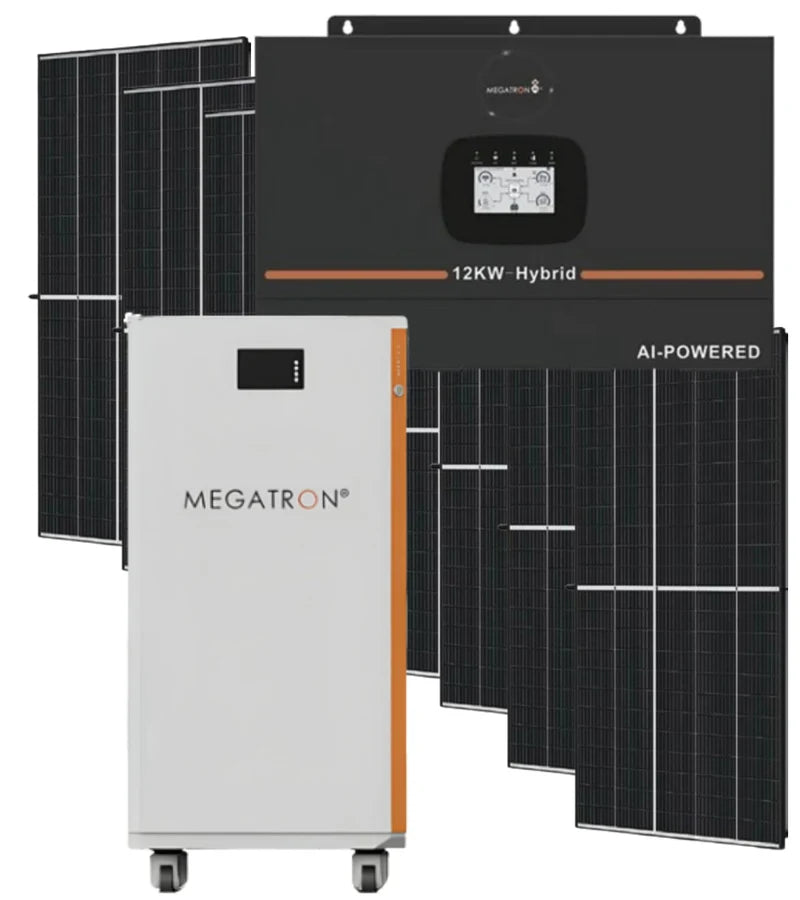

12KVA Hybrid Inverter Plus 14.3KWH Lithium Battery and 8X 620w JA Solar Panel Combo

12KVA Hybrid Inverter Plus 14.3KWH Lithium Battery and 8X 620w JA Solar Panel Combo

48v 12KW Hybrid Inverter Single Phase Megatron MT-12K1P-BL-G3

• PV Oversizing Support up to 200% oversizing ratio
• Exceptional Load-carrying Capability Battery discharge current up to 280A, support higher loads powered by battery only
• Parallel Connection Support parallel connection up to 9 units
• Powerful Instant Overload Capacity Support 2 times the rated power for 5 seconds in off-grid mode
• Touch Screen 4.3'' 800x480 interactive display
• Flexible Connection · GEN port for generator input · Dual AC outputs for smart load management
• Seamless Switchover UPS-level switching time≤4ms
• High-Temperature Adaptability Allow full-power output under high-temperature conditions

48v Lithium Battery Megatron 14.3KW THS15

The MEGATRON®THS15 is a high-performance Lithium Iron Phosphate(LiFePO4) energy storage system
designed to provide reliable,large-scale power backup for residential and commercial applications.With
a substantial 14.34kWh rated energy capacity,this unit is engineered to handle heavy electrical loads,
making it an ideal solution for sustaining critical appliances and systems during extended outages .

The JA Solar 620W Bi-Facial N-Type Solar Panel (Model: JAM66D45 LB N-TYPE) is engineered for high performance, reliability, and maximum energy generation. Designed with cutting-edge Multi-Busbar (MBB) Half-Cell Technology, this bi-facial solar panel enhances efficiency, durability, and energy yield, making it an ideal choice for residential, commercial, and utility-scale solar projects.

Specifications :

Nominal Max. Power (Pmax) 620 W
Open Circuit Voltage (Voc) 48.50V
Opt. Operating Voltage (Vmp) 40.21 V
Short Circuit Current (Isc) 16.13 A
Opt. Operating Current (Imp) 15.42 A
Module Efficiency (%) 23.1

 Combo includes:

• 1x 48v 12KW Hybrid Inverter Single Phase Megatron MT-12K1P-BL-G3 3 Year Repair Warranty
• 1x 48v Lithium Battery Megatron 14.3KW THS15 10 Year Warranty

• 8X JA 620W Tier 1 Bifacial Mono Solar Panel
