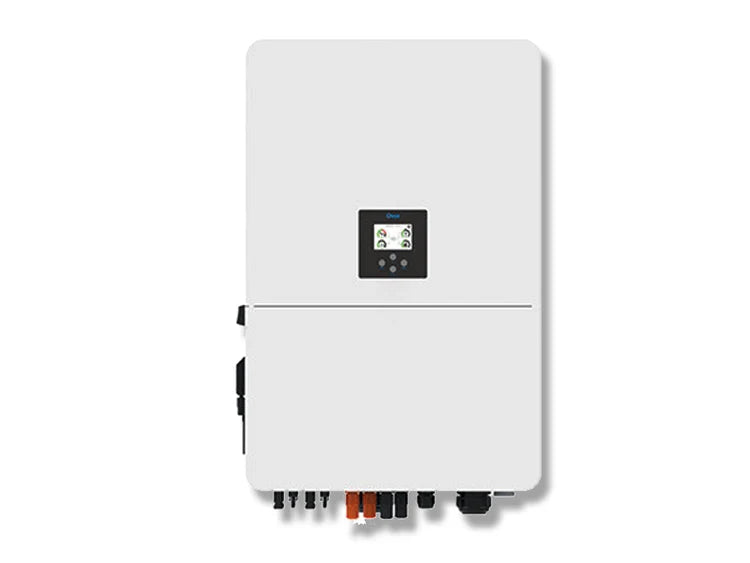

Deye 125kW 3 Phase HV Hybrid Solar Inverter

Deye 125kW Inverter

The Deye 125kW Inverter is a powerful three-phase high-voltage hybrid inverter for commercial and industrial solar systems. With a rated output of 125kW, it can support large energy requirements in factories, warehouses, farms and other commercial facilities.

In addition, the inverter works with high-voltage lithium battery systems. The battery voltage range extends from 160V to 1000V. Therefore, installers can combine the inverter with compatible HV battery storage for larger solar energy projects.

Deye 125kW Inverter for Commercial Solar

The Deye 125kW Inverter provides 125,000W of rated three-phase output power. Furthermore, it supports a maximum apparent power of 135,000VA.

The inverter uses multiple MPPT trackers to manage different solar strings. Therefore, installers have greater flexibility when designing large solar arrays.

In addition, the system supports high-voltage lithium batteries. This makes the inverter suitable for commercial solar installations that combine PV generation with battery storage.

High-Voltage Battery Support

The inverter supports a battery voltage range of 160V to 1000V. Furthermore, it provides two battery inputs and communicates with compatible lithium batteries through the BMS.

The system supports high charging and discharging currents. As a result, it can manage large battery storage systems more effectively.

Deye 125kW Hybrid Inverter Specifications

Model: SUN-125K-SG02HP3-EU-GM10
Rated Output Power: 125,000W / 125kW
Maximum Apparent Power: 135,000VA
Phase: Three Phase
Battery Type: Lithium-ion
Battery Voltage Range: 160–1000V
Maximum Charging Current: 100A + 100A
Maximum Discharging Current: 100A + 100A
Number of Battery Inputs: 2
Maximum PV Input Power: 200,000W
Maximum PV Input Voltage: 1000V
Start-Up Voltage: 180V
MPPT Voltage Range: 150–850V
AC Output: Three Phase
Protection Rating: IP65
Application: Commercial and Industrial Solar Systems

Intelligent Commercial Energy Management

The inverter can form the centre of a large commercial solar and battery system. For example, businesses can combine solar panels, compatible HV batteries and grid power within one energy management solution.

Furthermore, the inverter supports AC coupling for existing solar installations. It also supports multiple units in parallel for larger projects.

In addition, the system can store energy supplied through a compatible diesel generator configuration. Therefore, it provides greater flexibility for sites that require several energy sources.

Built for Large Solar Installations

The IP65 enclosure provides protection for demanding installation environments. Moreover, the inverter supports commercial applications where large solar arrays and high-voltage batteries operate together.

Overall, the Deye 125kW hybrid platform provides substantial power for commercial and industrial solar installations. Its combination of 125kW three-phase output, high-voltage battery support and advanced solar management makes it suitable for large energy projects.
