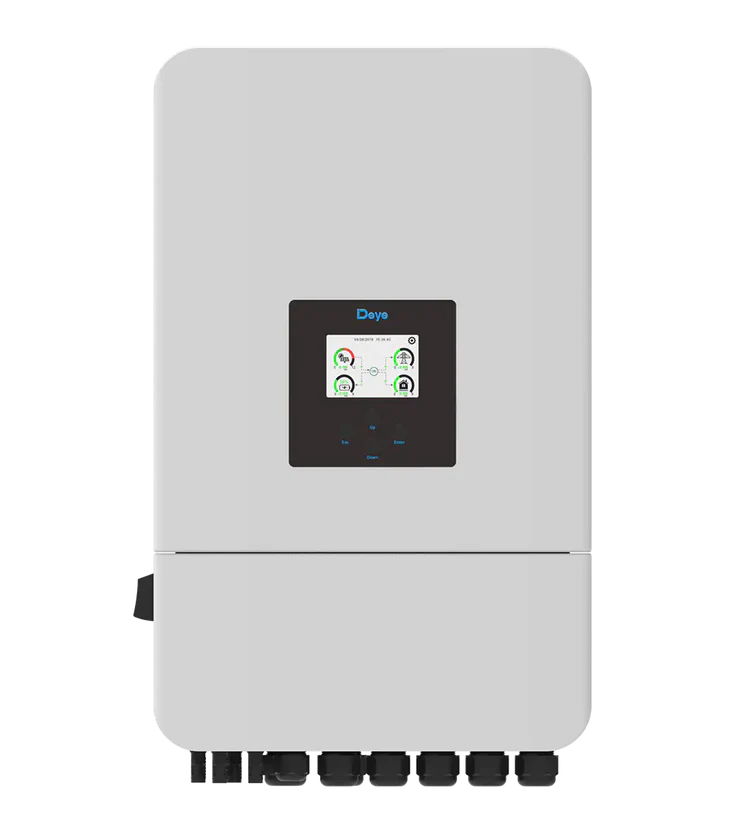

Deye 12kW Three Phase Hybrid Inverter 48V SUN-12K-SG05LP3-EU-SM2
Deye 12kW Three Phase Hybrid Inverter 48V SUN-12K-SG05LP3-EU-SM2
Couldn't load pickup availability
Deye 12kW Three Phase Hybrid Inverter – SUN-12K-SG05LP3-EU-SM2
The Deye 12kW three phase inverter is a powerful hybrid solar inverter designed for large homes, businesses, farms and commercial solar installations in South Africa. With 12kW rated output, 48V low-voltage battery support, 240A charging and discharging current and 2 MPPT trackers, it is ideal for customers looking for a reliable Deye inverter South Africa, 12kW hybrid inverter, three phase solar inverter or commercial backup power system.
It supports 100% unbalanced output, AC coupling for existing solar systems, up to 10 inverters in parallel, multiple batteries in parallel, six programmable battery charging/discharging periods and energy storage from a diesel generator.
Key Features
- 12kW three phase hybrid inverter
- 48V low-voltage battery system
- Lithium-ion and lead-acid battery compatible
- Max. 240A charging/discharging current
- 100% unbalanced output
- Up to 50% rated power available per phase
- AC coupling for existing solar installations
- Supports up to 10 inverters in parallel
- Supports multiple batteries in parallel
- 6 programmable charging/discharging periods
- Diesel generator energy storage support
- 2 MPPT solar trackers
- Ideal for homes, businesses, farms and commercial solar systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Deye |
| Model | SUN-12K-SG05LP3-EU-SM2 |
| Inverter Type | Three Phase Hybrid Inverter |
| Rated Output Power | 12kW |
| Battery Type | Lead-acid / Lithium-ion |
| Battery Voltage Range | 40–60V |
| Nominal Battery System | 48V |
| Max. Charging Current | 240A |
| Max. Discharging Current | 240A |
| Lithium Battery Charging Strategy | Self-adaption to BMS |
| Max. PV Access Power | 24,000W |
| Max. PV Input Power | 18,000W |
| Max. PV Input Voltage | 800V |
| Start-up Voltage | 160V |
| MPPT Voltage Range | 200–650V |
| Rated PV Input Voltage | 550V |
| Max. Operating PV Input Current | 26A + 26A |
| Max. PV Short-Circuit Current | 39A + 39A |
| No. of MPPT Trackers | 2 |
| Strings per MPPT | 2 + 2 |
| Parallel Operation | Up to 10 Units |
| AC Coupling | Supported |
| Generator Support | Supported |
| Dimensions | 386 × 660 × 250mm |
| Weight | 35.2kg |
| Warranty | 5 Years |
These specifications match Deye’s official SG05LP3-EU-SM2 product family and datasheet.
Deye 12kW Three Phase Inverter South Africa
The Deye 12kW hybrid inverter is ideal for properties with a three-phase electrical supply and higher energy requirements. It can intelligently manage solar panels, lithium batteries, grid power and generator input, making it suitable for residential, agricultural and commercial solar systems.
Its 100% unbalanced output is especially useful where electrical loads are not distributed evenly across all three phases.
What’s in the Box?
- 1 × Deye 12kW Three Phase Hybrid Inverter
- 1 × User Manual
5-Year Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician with valid registration with the relevant South African authority.
A valid Electrical Certificate of Compliance (COC) must be issued after installation. The installation must comply with SANS 10142 and all applicable requirements.
Warranty claims submitted without installation photos, a valid COC and proof of installation by a qualified wireman or Master Electrician may be rejected.
Shop the Deye 12kW three phase inverter in South Africa from Lekker Volt for a high-performance solar, lithium battery and backup power solution.
