Deye
Deye 16kW Hybrid Inverter – Single Phase
Deye 16kW Hybrid Inverter – Single Phase
Couldn't load pickup availability

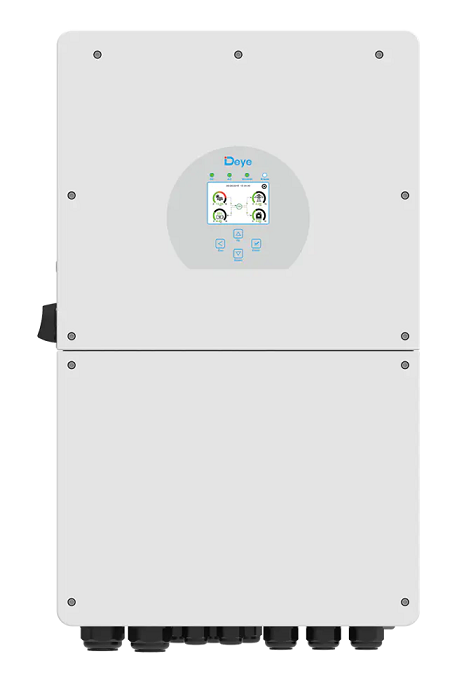

Deye 16kW Single Phase Hybrid Inverter SUN-16K-SG01LP1-EU
The Deye 16kW Hybrid Inverter SUN-16K-SG01LP1-EU is a powerful single phase hybrid solar inverter designed for large residential, commercial and high-demand solar installations in South Africa.
With a 16kW rated output, 48V low-voltage battery support, 290A maximum charging and discharging current and three MPPT trackers, this inverter is ideal for customers searching for a Deye inverter South Africa, 16kW hybrid inverter, solar inverter for sale, lithium battery inverter or high-capacity backup power system. Deye officially lists the SUN-16K-SG01LP1-EU as part of its 12–16kW single-phase low-voltage hybrid inverter range.
- AC couple to retrofit an existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation
- Supports multiple batteries in parallel
- Max. charging/discharging current of 290A
- 48V low-voltage battery system
- 6 time periods for battery charging/discharging
- Supports storing energy from a diesel generator
- 3 MPPT trackers for improved solar harvesting
- Ideal for large homes, businesses and commercial solar systems
Technical Data
Battery Input Data
| Specification | Details |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60V |
| Max. Charging Current | 290A |
| Max. Discharging Current | 290A |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Inputs | 2 |
Deye specifies a 40–60V battery range and maximum charge/discharge current of 290A for the 16kW model.
PV String Input Data
| Specification | Details |
|---|---|
| Max. PV Access Power | 32,000W |
| Max. PV Input Power | 24,000W |
| Max. PV Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150–425V |
| Rated PV Input Voltage | 370V |
| No. of MPP Trackers | 3 |
| No. of Strings per MPPT | 2 + 2 + 2 |
The 16kW platform uses three MPPT trackers and supports a large PV array, making it suitable for high-demand South African solar installations.
AC Input / Output Data
| Specification | Details |
|---|---|
| Rated AC Input/Output Active Power | 16,000W |
| Rated AC Output Current | 69.6A |
| Max. Continuous AC Passthrough | 100A |
| Peak Power – Off Grid | Up to 2 × rated power for short-duration surge |
| Rated Voltage | 220V / 230V |
| Grid Connection | L + N + PE |
| Rated Grid Frequency | 50Hz / 60Hz |
| Power Factor | 0.8 leading – 0.8 lagging |
| THDi | <3% |
Deye’s technical documentation lists 16,000W rated output and 69.6A rated AC output current for the 16kW model.
Efficiency & Protection
| Specification | Details |
|---|---|
| Max. Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | >99% |
| Protection Rating | IP65 |
| Display | Colour Touch LCD |
| Cooling | Intelligent Air Cooling |
| Communication | CAN / RS485 / Wi-Fi options |
| Parallel Operation | Up to 16 units |
| AC Coupling | Supported |
| Generator Support | Supported |
Deye lists AC coupling, six programmable charging/discharging periods and parallel operation for this inverter family.
Size
| Specification | Details |
|---|---|
| Dimensions | 464 × 763 × 282 mm |
| Weight | Approx. 52 kg |
| Installation Type | Wall-mounted |
| Protection Degree | IP65 |
Warranty
5 Years, subject to the applicable Deye/distributor warranty terms.
Warranty Requirements
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician with a valid registration with the Department of Employment and Labour. A valid Electrical Certificate of Compliance (COC) must be issued once installed, specific to the installation of the backup or solar system.
The installation must comply with SANS 10142 and all applicable parts. Any warranty claim submitted without installation photos, a valid COC and proof that the installation was completed by a qualified wireman or Master Electrician may be rejected and may render the warranty claim null and void.
Deye 16kW Hybrid Inverter for Sale in South Africa
The Deye 16kW Hybrid Inverter is ideal for customers looking for a powerful solar inverter in South Africa for larger homes, businesses, farms and commercial properties. Its high battery current, large solar PV capacity and flexible hybrid functionality make it an excellent choice for solar power systems, backup power, lithium battery storage and reducing reliance on the electricity grid.
Shop the Deye 16kW inverter in South Africa from Lekker Volt for a high-performance solar and battery solution.
