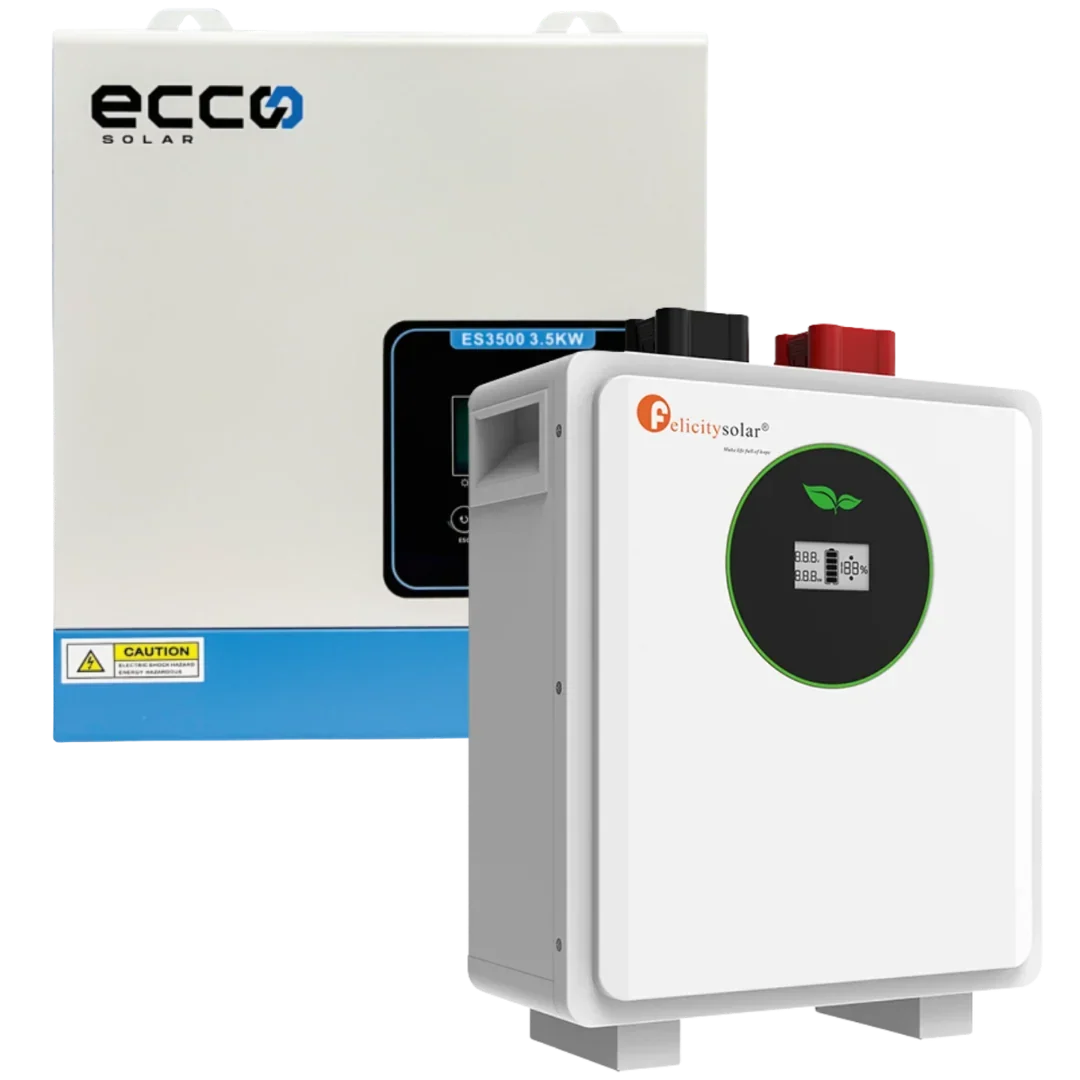

Ecco 3.5KW 3500W MPPT 100 AH 2.56 Felicity Lithium Combo

Inverter Specifications :

Hybrid Inverter 24v 3.5 Kva 3500w MPPT 100A Inverter Pure Sine Wave - Ecco

Model Name : ES3500

Inverter Mode :
Rated Power : 3500VA/3500W
Nominal Voltage : 24V

Ac Charger Mode :
AC Input : 230VAC 50/60HZ
MAX Charge Current : 60A
Max Charger Current AC+PV : 100A
AC Ouptut : 230VAC

Solar Charger Mode:
Max PV Array Power: 4000W
Min Solar Voltage : 30VDC
Max Solar Voltage (VOC) : 500VDC
Max MPPT Charge Current : 100A

Battery Specifiications :

Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2

Features :

• Remote Monitoring Via FSolar APP

• Max 15 Units Parallel

• Wall / Floor Mounted Installation

• High Compatibility With Leading Inverter Brands

Specifications :

Battery Type Nominal Energy : LiFePO4
Nominal Voltage : 25.6V
Operating Voltage : 22.4-28.8V
Max. Continuous Charge/Discharge Current[1] : 100A
Peak Charge/Discharge Current(15s) : 200A
Max. Charge/Discharge Power : 2500W
Scalability : MAX 15 IN PARRALEL
Depth of Discharge (DOD) : 95%
Communication :  RS485/CAN
Protection Degree : IP21
Cycle Life : 6000 CYCLES
Display Type : LCD+LED
Installation :  WALL / FLOOR MOUNTED
Protection :  Built In Smart BMS,FUSE
Warranty Period : 7 Years
Certification : UN38.3
Product Weight : 23KG
Package Weight :  27KG
Product Dimension : 325 X 400 X 180MM
Package Dimension : 462 X 417 X 252MM

Package Includes:

1x Hybrid Inverter 24v 3.5 Kva 3500w MPPT 100A Inverter Pure Sine Wave - Ecco (1 Year Warranty)
1x Felicty 25.6v 100Ah 2.56 kWh Lithium Battery FLA24100WG2 (7 Years Warranty)
