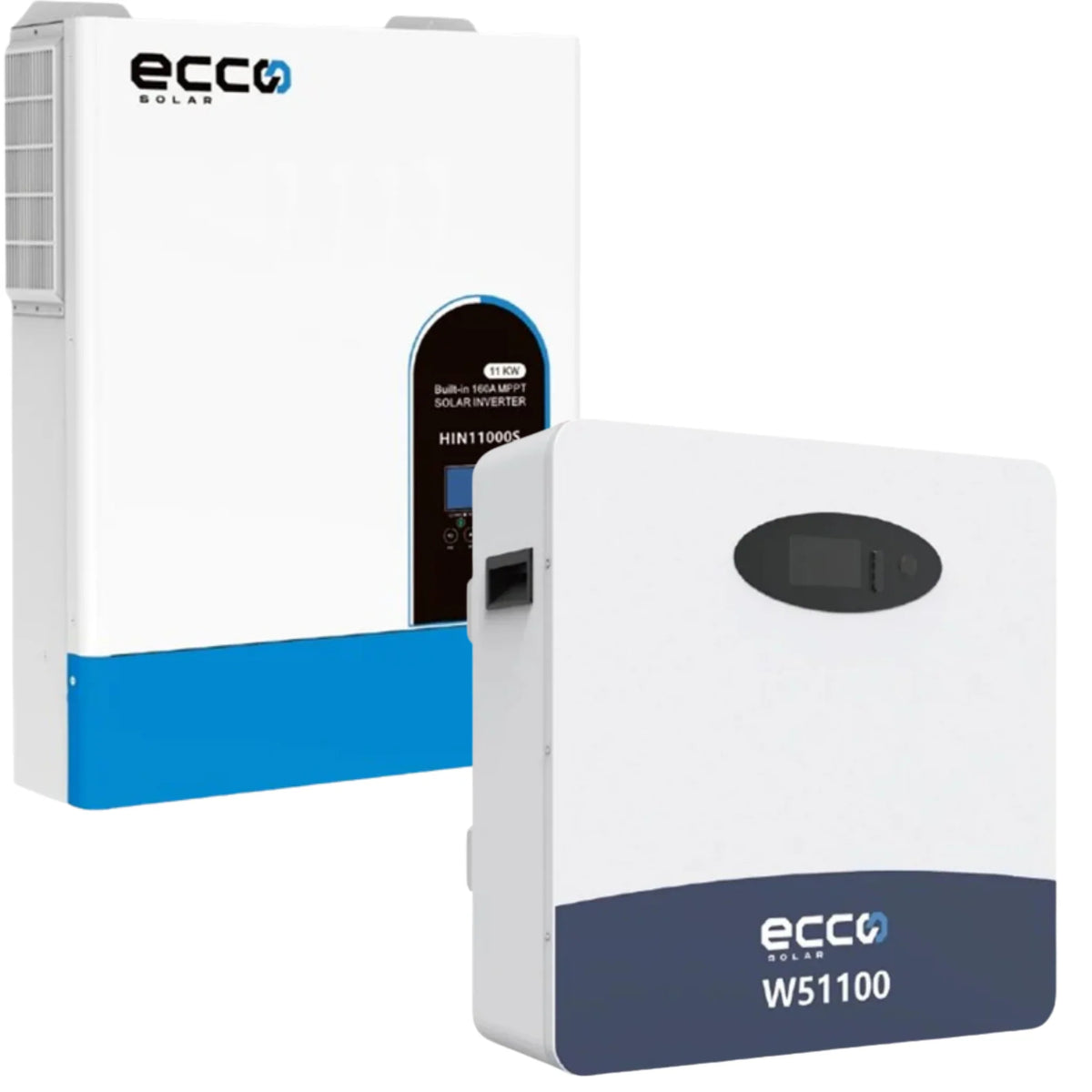

Ecco 6.2kVA Hybrid Inverter + 5.12kWh Lithium Battery Combo | Complete Solar & Load Shedding Backup System

Power your home or business with the Ecco 6.2kVA Hybrid Inverter and 5.12kWh 51.2V Lithium Battery Combo, a powerful and reliable solar backup system designed for South African homes, offices and small businesses.

This complete load shedding solution combines a 6200W pure sine wave hybrid inverter with a 51.2V 100Ah 5.12kWh LiFePO4 lithium battery, giving you reliable backup power while also allowing integration with solar panels.

With a 120A MPPT solar charge controller, up to 500V DC PV input, lithium battery communication, optional Wi-Fi monitoring and 6000+ battery cycles, this combo provides an excellent foundation for a modern home solar system in South Africa.

Both the inverter and battery include a 5-year warranty, subject to the installation and warranty requirements below.

What's Included in the Ecco Solar Combo?

• 1 × Ecco 6.2kVA 6200W 48V Hybrid Inverter
• 1 × Ecco/Leoch LW51.2-100 5.12kWh 51.2V 100Ah Lithium Battery
• 5-Year Warranty on Inverter
• 5-Year Warranty on Battery

Ecco 6.2kVA Hybrid Inverter Features

The Ecco 6.2kVA hybrid inverter delivers up to 6200W of pure sine wave power and is designed to work with solar panels, lithium batteries and utility power.

Key Inverter Features

• 6.2kVA / 6200W output
• 48V battery system
• Pure sine wave inverter
• Built-in 120A MPPT solar charge controller
• Supports up to 500V DC solar PV input
• Dual-output functionality for smart load management
• Lithium battery activation through solar PV or utility
• RS485 communication for compatible LiFePO4 batteries
• Can operate without a battery
• Optional Wi-Fi remote monitoring
• Detachable dust cover for demanding environments
• Multiple operating modes: UTL, SOL, SBU and SUB
• Battery EQ functionality

Ecco 6.2kVA + 5.12kWh Battery Combo Specifications

5.12kWh 51.2V 100Ah LiFePO4 Lithium Battery

The included LW51.2-100 lithium battery provides 5.12kWh of energy storage using long-lasting LiFePO4 battery technology.

Its built-in Battery Management System (BMS) provides multiple protection functions while communication through RS485, RS232 and CAN allows integration with compatible inverter systems.

The battery also supports Bluetooth and Wi-Fi functionality, allowing important information such as State of Charge (SOC), battery voltage and temperature to be monitored.

Lithium Battery Features

• 5.12kWh energy capacity
• 51.2V 100Ah
• LiFePO4 lithium battery technology
• 6000+ cycles at 80% DOD
• More than 15-year design life
• Built-in intelligent BMS
• Maximum 100A charge/discharge current
• Bluetooth & Wi-Fi functionality
• RS485 / RS232 / CAN communication
• Up to 15 batteries in parallel
• Compact wall-mounted design
• Compatible with mainstream inverter systems
• Can be used in parallel with Ecco W51100 and ELV51100 batteries

Complete Load Shedding & Solar Backup Solution

This 6.2kVA inverter and lithium battery combo is an excellent starting point for customers looking for a complete home backup power system rather than purchasing an inverter and battery separately.

The inverter can intelligently manage solar PV, battery and utility power, while the 5.12kWh lithium battery stores energy for use when required.

Add compatible solar panels to create a more complete hybrid solar system, allowing solar energy to contribute toward powering loads and charging the battery.

Battery-Free Solar Operation

One of the key advantages of the Ecco 6.2kVA inverter is its ability to operate without a battery.

This provides greater installation flexibility for customers who want to start with an inverter and solar panels or expand their energy-storage capacity at a later stage.

This combo already includes the 5.12kWh lithium battery, providing backup energy storage from day one.

Expandable Battery Storage

Need longer backup times in the future? The included battery supports up to 15 parallel battery connections, allowing the energy-storage system to be expanded as your requirements increase.

This makes the system suitable for customers who want to start with 5.12kWh battery storage while retaining the flexibility to build a significantly larger battery bank later.

Ideal for South African Homes & Businesses

The Ecco 6.2kVA solar combo is suitable for applications including:

• Home solar systems
• Load shedding backup
• Residential backup power
• Small businesses
• Offices
• Shops
• Hybrid solar installations
• Off-grid power systems
• Solar PV systems
• Backup inverter systems

Actual appliances and backup duration will depend on the connected load, battery state of charge, inverter configuration and solar production.

5-Year Warranty

Both the Ecco 6.2kVA Hybrid Inverter and the included 5.12kWh Lithium Battery carry a 5-year warranty, subject to the applicable warranty conditions.

Important Warranty & Installation Requirements

To maintain the validity of the 5-year warranty, the inverter and battery must be installed by a qualified electrical wireman or Master Electrician with valid registration from the Department of Labour.

A valid Electrical Certificate of Compliance (COC) must be issued following installation and must specifically cover the installed backup or solar system.

Customers should retain their COC, installation documentation and proof of purchase for warranty purposes.

Why Buy This Ecco Solar Combo?

Instead of purchasing your inverter and battery separately, this Ecco inverter and lithium battery combo provides the essential components for a powerful backup and solar-ready system in one package.

With 6.2kVA inverter capacity, 5.12kWh lithium battery storage, 120A MPPT charging, 500V PV input, smart battery communication and expandable energy storage, it offers excellent flexibility for South African residential and small-business installations.
