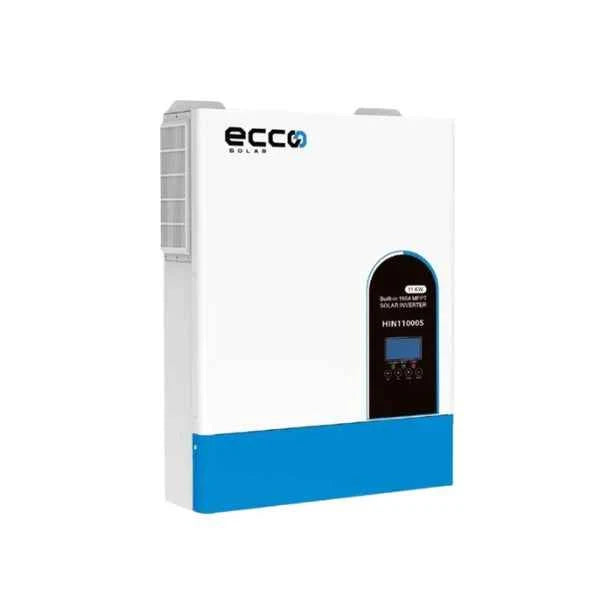

ECCO - Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave

• Dual MPPT Functionality: Built-in 2 MPPT charge controllers for maximum solar energy harvesting.
• Lithium Battery Activation: Supports activation via PV (solar) or utility power.
• RS485 Communication: Fully compatible with LiFePO4 batteries for enhanced performance.
• Pure Sine Wave Output: Delivers clean, stable power with a power factor of 1.0.
• Wide PV Input Range: Maximum 500VDC input for flexible system design.
• Detachable Dust Cover: Ideal for harsh environments to protect internal components.
• WiFi Remote Monitoring: Optional WiFi dongle for remote monitoring and control.
• Multiple Output Priority Settings: Choose between SUB, SBU, and SUF for versatile output management.
• EQ Function: Optimizes battery performance and extends battery life.

Specifications:

Model: HIN11000S
Capacity: 11KVA / 11KW
Maximum PV Input Power: 11KW
Lithium Battery Activation: Yes (via PV or Utility)
Lithium Battery Communication: Yes (RS485)
Parallel Capability: Not supported

Input:

• Nominal Voltage: 230VAC
• Acceptable Voltage Range:
  • 170-280VAC (for computers)
  • 90-280VAC (for home appliances)
• Frequency: 50/60 Hz (Auto-sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Surge Power: 22,000VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (for computers), 20ms (for home appliances)
• Peak Efficiency: 94%
• Overload Protection: 5s at 140% load

Battery:

• Battery Voltage: 48V
• Maximum Discharge Current: 220A
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC/CV

Solar Charger & AC Charger:

• Solar Charger Type: MPPT
• Max PV Array Power: 5500W x 2
• Max PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 60VDC - 500VDC
• Max Solar Input Current: 18A x 2
• Max Solar Charge Current: 160A
• Max AC Charge Current: 120A
• Max Charge Current: 160A

Physical:

• Dimensions (D x W x H): 540 x 415 x 122 mm
• Net Weight: 15kg
• Communication Interface: RS232/RS485/DRY Contact
• LCD Display: Yes

Environmental:

• Operating Temperature: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95%
