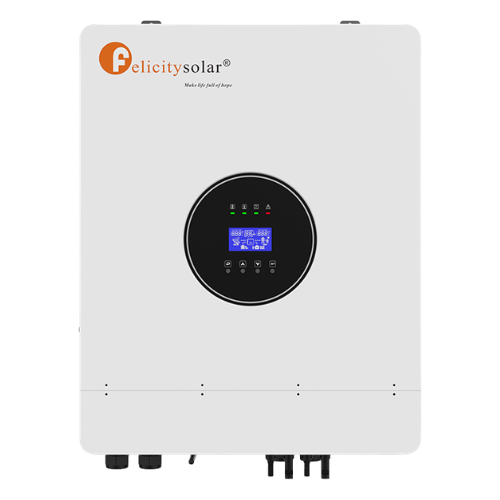

Felicity Solar 12kW 48V Off-Grid Solar Inverter IVCM12048

Felicity Solar 12kW 48V Solar Inverter IVCM12048

Introducing the Felicity Solar 12kW 48V Solar Inverter IVCM12048

Premium single-phase off-grid inverter combining pure sine wave output, dual MPPT solar chargers (2 strings), and AC/battery charger with WiFi APP monitoring for large residential/commercial solar systems. Features LCD settings for priority (AC/solar/battery), generator compatibility, auto-restart, overload (150% 10s), and protections.

Features:

• Pure sine wave solar inverter
• Built-in 240A MPPT solar charger
• High PV input voltage range (90-450Vdc)

Specifications:

• PV INPUT:
  • Max. PV Array Open Circuit Voltage 500Vdc
  • PV Array MPPT Voltage Range 90Vdc~450Vdc
• Max. PV Array Power
  • PV 15000W (7500W for single PV)
• GRID/AC OUTPUT:
  • Rated output: 8000W
  • Nominal Operating Frequency: 50/60Hz

• What’s in the box?

  • 1 x Inverter
  • 1 x User Manual

  3-Year Warranty

  Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system.  Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
