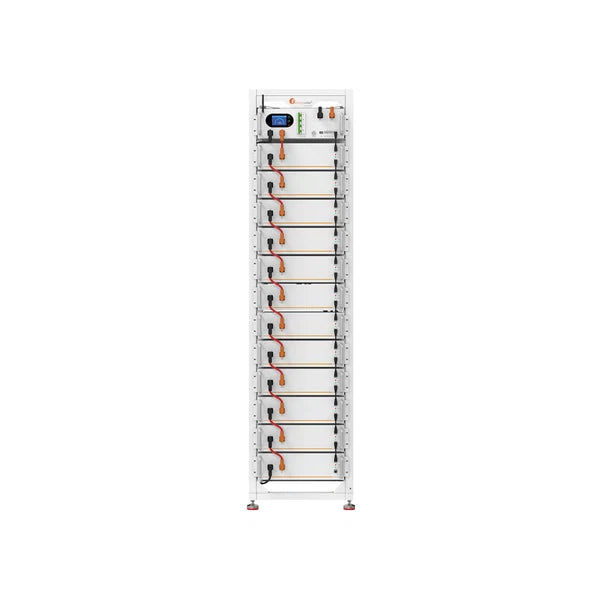

Felicity LUX-Y 61.44kWh High Voltage Lithium Battery System | LiFePO4 Commercial Solar Battery

ONLINE DEAL ONLY – CAN BE ORDERED FOR IN-STORE COLLECTION IF REQUIRED

The Felicity LUX-Y 61.44kWh High Voltage Lithium Battery System is a powerful and scalable LiFePO4 solar energy storage solution designed for large residential properties, commercial backup power and high-demand solar installations in South Africa.

Built around the Felicity LUX-Y-48100HG01 5.12kWh battery modules, the system provides up to 61.44kWh of energy storage while offering expansion capabilities for substantially larger commercial installations.

With Lithium Iron Phosphate (LiFePO4) battery technology, built-in aerosol fire extinguishing, intelligent battery protection, wide inverter compatibility and a 10-year warranty, the Felicity LUX-Y provides a comprehensive high-voltage battery solution for customers requiring dependable long-term solar energy storage.

Key Features

• 61.44kWh high-voltage lithium battery system
• Premium LiFePO4 / Lithium Iron Phosphate technology
• 5.12kWh individual battery modules
• 51.2V 100Ah per battery module
• System configurations from 20.48kWh to 61.44kWh
• Scalable to 16 clusters
• Maximum stated system scalability of 983.04kWh
• Built-in aerosol fire extinguishing system
• Intelligent battery protection
• Inverter interface protection
• High system stability
• Wide inverter brand compatibility
• Suitable for large residential and commercial installations
• Designed for high-demand backup power
• Modular energy-storage architecture
• 10-year warranty

Felicity LUX-Y 61.44kWh Battery Specifications

61.44kWh Solar Battery Storage

The Felicity 61.44kWh lithium battery system provides substantial energy-storage capacity for customers whose power requirements exceed those of conventional 5kWh, 10kWh or 15kWh residential battery systems.

With up to 61.44kWh of battery storage, the LUX-Y system is particularly suited to larger properties and businesses requiring extended backup power or greater storage capacity for solar-generated electricity.

When integrated into a correctly designed solar system, the battery bank can store available solar energy for later use, helping increase solar self-consumption and reduce dependence on grid electricity.

Modular 5.12kWh LiFePO4 Battery Design

The LUX-Y system uses modular LUX-Y-48100HG01 batteries, with each module providing:

• 5.12kWh energy
• 51.2V nominal voltage
• 100Ah capacity
• LiFePO4 battery chemistry

This modular architecture allows the energy-storage system to be configured according to the requirements of the installation.

Built-In Aerosol Fire Extinguishing System

Safety is an important consideration for large-scale battery storage.

The Felicity LUX-Y incorporates a built-in fire extinguishing aerosol system. According to the supplied product information, in extreme circumstances the aerosol system is designed to quickly suppress a fire and help prevent it from spreading.

Combined with the inherent stability of LiFePO4 battery chemistry, this provides an additional layer of protection for high-capacity energy-storage applications.

Massive Scalability

The Felicity LUX-Y is designed for significantly more than standard residential energy storage.

The supplied specifications state that the system supports scalability of up to 16 clusters, providing a stated maximum energy-storage capacity of up to 983.04kWh.

This scalability makes the platform suitable for customers whose energy-storage requirements may grow significantly over time.

Residential & Commercial Energy Storage

The LUX-Y battery system can be used across a variety of high-demand applications, including:

• Large home solar systems
• Villas and large residential properties
• Commercial solar installations
• Business backup power
• Offices
• Retail properties
• Farms and agricultural applications
• High-capacity solar energy storage
• Commercial backup systems
• Hybrid solar systems
• Large battery energy-storage systems

Wide Inverter Compatibility

The Felicity LUX-Y is designed to work with multiple well-known inverter brands, providing flexibility when designing a complete solar and battery-storage solution.

Because this is a high-voltage energy-storage system, compatibility should always be confirmed for the specific inverter model, battery configuration, operating voltage and BMS communication protocol before installation.

10-Year Warranty

The Felicity LUX-Y lithium battery system is supplied with a 10-year warranty, subject to applicable manufacturer warranty terms and installation requirements.

Professional installation and correct system configuration are essential for a battery system of this capacity.

Why Choose the Felicity LUX-Y 61.44kWh Battery?

The Felicity LUX-Y 61.44kWh High Voltage Lithium Battery System provides a strong combination of high energy capacity, modular expansion, LiFePO4 technology and enhanced battery safety.

With 61.44kWh maximum system capacity, 5.12kWh modular batteries, aerosol fire suppression, inverter interface protection, wide compatibility and expansion up to 16 clusters, it provides a scalable energy-storage platform for demanding South African residential and commercial solar installations.
