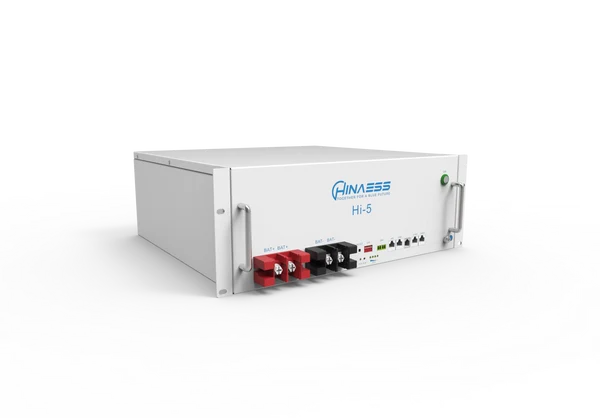

HINA ESS Hi-5 5.12kWh Lithium Battery | 51.2V 100Ah LiFePO4 Solar Battery

The HINA ESS Hi-5 Lithium Battery is a high-performance 5.12kWh LiFePO4 battery designed for reliable solar energy storage, load shedding backup, hybrid solar systems and off-grid applications in South Africa.

Featuring a 51.2V 100Ah capacity, advanced Battery Management System (BMS) and a cycle life exceeding 6,000 cycles at 80% DoD, the HINA ESS Hi-5 provides dependable long-term energy storage for homes, businesses and commercial solar installations.

Whether you're installing a new solar power system or upgrading your existing inverter and battery backup system, the HINA ESS Hi-5 offers an efficient, safe and scalable solution for keeping essential loads powered during electricity outages.

Key Features

• 5.12kWh lithium battery for solar and backup power
• 51.2V 100Ah battery capacity
• Premium Lithium Iron Phosphate (LiFePO4) cells
• 6,000+ cycles at 80% Depth of Discharge
• High ≥96% charge efficiency
• Advanced intelligent Battery Management System (BMS)
• Protection against overcharge, over-discharge, short circuits and temperature-related risks
• Parallel connection support for increased battery storage
• Compatible with a wide range of hybrid inverters and solar systems
• Suitable for residential and commercial solar installations
• Compact design for installations where space is limited
• 10-year performance warranty, subject to warranty conditions

Technical Specifications

Reliable Lithium Battery for Load Shedding

The HINA ESS Hi-5 5.12kWh battery is an excellent choice for South African households and businesses looking for a reliable load shedding backup solution.

When connected to a compatible hybrid inverter, the battery can store energy generated by your solar panels and make that stored power available when required. This allows your solar installation to provide greater energy independence while reducing reliance on grid electricity.

Depending on your inverter size, loads and system configuration, the Hi-5 can be used to support essential appliances such as refrigerators, lights, TVs, Wi-Fi equipment, computers, security systems and other household or business loads.

Advanced LiFePO4 Battery Technology

The HINA ESS Hi-5 uses Lithium Iron Phosphate (LiFePO4) chemistry, one of the most popular battery technologies for modern solar energy storage systems.

With a rated cycle life of more than 6,000 cycles at 80% DoD, the battery is designed to provide years of reliable daily charging and discharging while maintaining strong performance.

Its high charge efficiency of ≥96% also helps maximise the energy available from your solar and backup power system.

Intelligent Battery Management System

The integrated smart BMS continuously monitors important battery operating parameters, including voltage, current and temperature.

The system provides protection against:

• Overcharging
• Excessive discharge
• Short circuits
• Abnormal operating temperatures

This makes the HINA ESS Hi-5 a reliable option for home solar battery systems and commercial energy storage installations.

Expandable Solar Energy Storage

Need more than 5.12kWh of battery storage? The Hi-5 supports parallel battery connections, allowing compatible batteries to be combined to increase total energy storage capacity.

This provides greater flexibility for homeowners and businesses that want to start with a smaller solar battery system and expand their storage capacity as their electricity requirements grow.

Ideal Applications

The HINA ESS Hi-5 is suitable for home solar systems, load shedding backup, hybrid inverter installations, off-grid solar systems, small businesses, offices, commercial properties and rural energy systems.

It can also be used for energy cost optimisation by storing available energy and using it later when required.

10-Year Performance Warranty

The HINA ESS Hi-5 lithium battery includes a 10-year performance warranty under the manufacturer's specified normal-use conditions.

The supplied warranty terms provide for 70% usable energy retention for 10 years from the warranty start date or 6,000 charge cycles, whichever occurs first. Customers should follow the HINA ESS user manual, installation requirements and warranty conditions to maintain warranty coverage.
