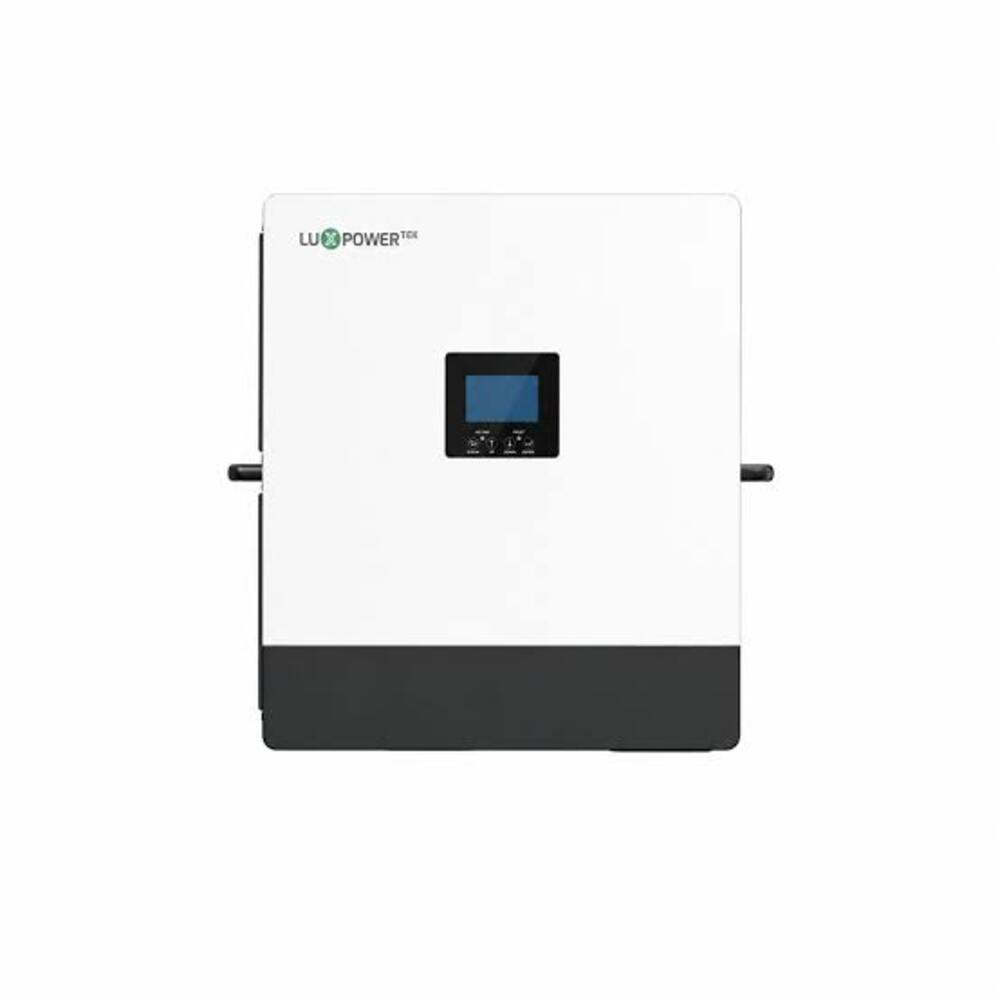

LuxPower 12kW Single Phase Eco Hybrid Inverter SNA12000

Technical Specifications

• Max. PV array power (W): 24000 (12000/12000)
• Rated PV input voltage (V): 320
• Number of independent MPPT inputs: 2/(2:2)
• PV input voltage range (V): 100-480
• MPPT voltage range (V): 120-385
• Start-up voltage (V): 100
• Max. PV input current per MPPT (A): 35/35
• Max. PV short-circuit current input per MPPT (A): 44/44
• Battery Specifications:
  • Battery Voltage Range: 44V – 58V
  • Battery Charging Current: 60A
  • Maximum Battery Charging Power: 3.6kW
  • Battery Type: Compatible with LiFePO4, Lithium-ion, and Lead-Acid batteries
  • Number of Battery Strings: 1-2 strings (depending on capacity)
