Luxpower 5kW Off-Grid Hybrid Inverter 48V SNA5000 WPV
Luxpower 5kW Off-Grid Hybrid Inverter 48V SNA5000 WPV
Couldn't load pickup availability

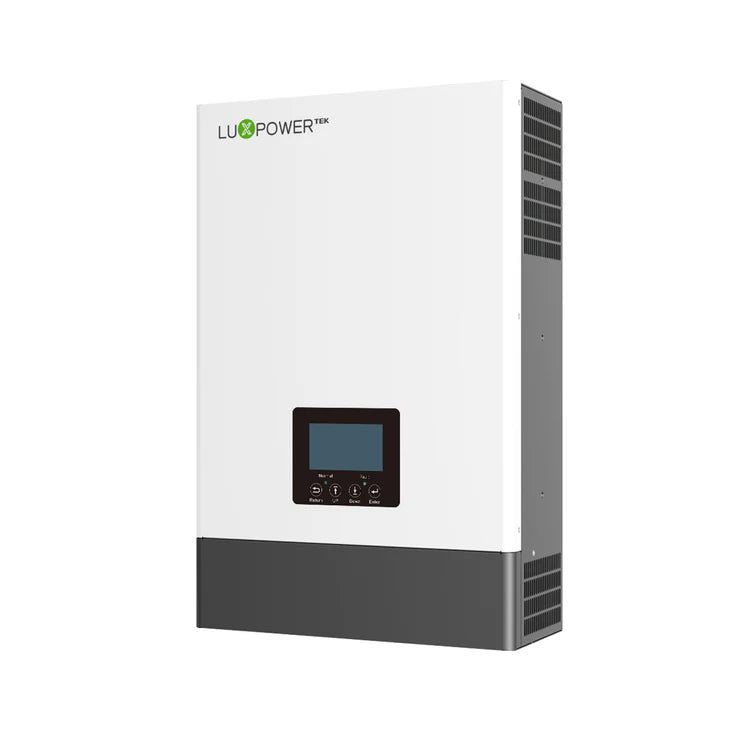

Luxpower SNA5000 WPV 5kW 48V Off-Grid Hybrid Inverter
The Luxpower 5kW inverter SNA5000 WPV is a versatile 48V off-grid hybrid inverter designed for home solar systems, backup power and small business installations in South Africa. With 5,000W rated output, dual MPPT solar inputs, lithium battery communication, generator support and remote Wi-Fi monitoring, it offers excellent flexibility for customers looking for a reliable 5kW inverter in South Africa.
The Luxpower SNA5000 can intelligently combine solar panels, lithium batteries, grid power and generator input. It supports simultaneous PV and AC power to loads, parallel operation of up to 10 units and communication with many popular lithium battery brands.
Key Features
- 5kW / 5000VA hybrid inverter
- 48V battery system
- Intelligent off-grid and hybrid operating modes
- 2 × MPPT solar trackers
- PV and AC can power loads simultaneously
- Pure sine wave output
- Up to 10kVA surge power
- Parallel operation up to 10 units
- Independent generator interface
- Lithium battery BMS communication via CAN/RS485
- Wi-Fi/GPRS remote monitoring
- Free monitoring app and remote firmware upgrades
- Suitable for residential and small commercial solar systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Luxpower |
| Model | SNA5000 WPV |
| Inverter Type | Off-Grid / Hybrid Inverter |
| Rated Power | 5,000W / 5,000VA |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-Acid |
| Normal Battery Voltage | 51.2V / 48V |
| Max. Battery Charge Voltage | 59V |
| Output Voltage | 230/240V |
| Output Frequency | 50/60Hz |
| Surge Power | 10,000VA |
| Transfer / Switch Time | 10ms |
| Output Waveform | Pure Sine Wave |
| MPPT Trackers | 2 |
| Recommended PV Power | 3,200W + 3,200W |
| Max. PV Open-Circuit Voltage | 480VDC |
| MPPT Voltage Range | 120–385VDC |
| Max. Solar Charge Current | 100A |
| Max. Solar Input Current | 13A + 13A |
| MPPT Efficiency | >98% |
| Parallel MPPT Charger | Yes |
| Grid Voltage | 230VAC |
| AC Input Range | 110–280VAC |
| Max. AC Charge Current | 60A |
| Frequency Range | 50/60Hz Auto-Sensing |
| Parallel Operation | Up to 10 Units |
| Lithium Communication | CAN / RS485 |
| Display | LCD + LED |
| Wi-Fi / GPRS | Yes |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Relative Humidity | 5%–95%, Non-Condensing |
| Dimensions | 330 × 504 × 135mm |
| Weight | 14kg |
| Warranty | 2 Years |
Lithium Battery Compatibility
The Luxpower SNA5000 inverter supports BMS communication with many popular lithium battery brands, including Dyness, PylonTech, Shoto, BYD, Hubble, Revov, Volta, CFE and UZ Energy, subject to compatible battery models and firmware.
Luxpower 5kW Inverter South Africa
The Luxpower 5kW hybrid inverter is a strong option for homeowners and businesses looking for a solar inverter in South Africa with flexible battery storage and backup power capabilities. Its dual MPPT design, 48V lithium battery support, generator integration and remote monitoring make it suitable for both off-grid and hybrid solar installations.
Shop the Luxpower 5kW inverter in South Africa from Lekker Volt for a cost-effective solar and backup power solution.
Warranty
2-Year Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician with valid registration. A valid Electrical Certificate of Compliance (COC) must be issued for the installation, and the installation must comply with SANS 10142 and applicable requirements.
Warranty claims without installation photos, a valid COC and proof of installation by a qualified wireman or Master Electrician may be rejected.
