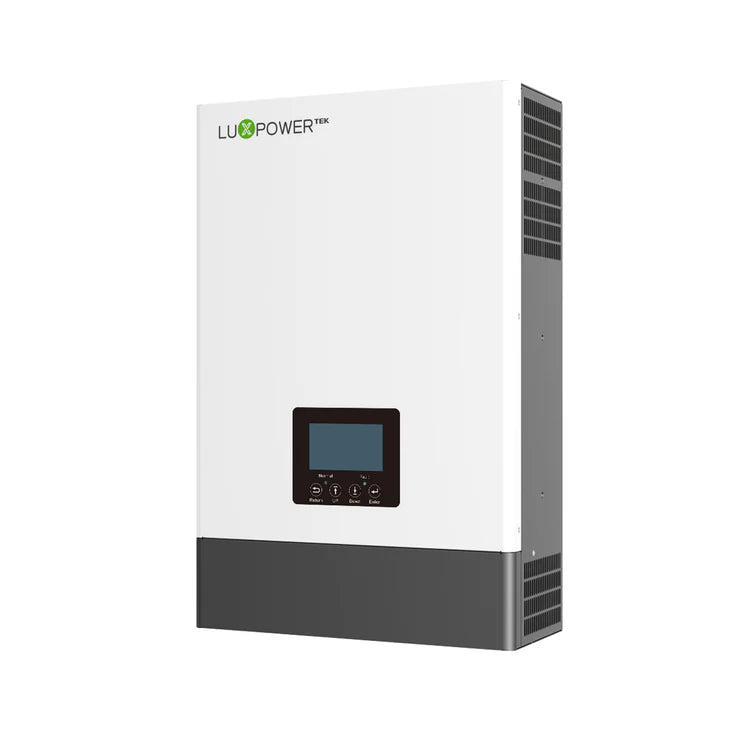

LuxPower 6kW Eco Hybrid Inverter 48V SNA 6000W
LuxPower 6kW Eco Hybrid Inverter 48V SNA 6000W
Couldn't load pickup availability
LuxPower 6kW Eco Hybrid Inverter – SNA 6000W
The LuxPower 6kW inverter is a versatile 48V off-grid hybrid inverter designed for homes, businesses and backup power systems in South Africa. It supports solar panels, lithium batteries, grid power and generator input, making it a strong option for customers looking for a 6kW inverter South Africa, LuxPower inverter, off-grid inverter or hybrid solar inverter.
With 6kW output, dual MPPT solar inputs, Wi-Fi monitoring, lithium battery communication and parallel operation, the LuxPower SNA 6000W is suitable for both backup power and energy independence.
Key Features
- 6kW / 6000W hybrid inverter
- 48V battery system
- Intelligent off-grid and hybrid modes
- 2 independent MPPT solar inputs
- Wide PV input voltage range
- Supports lithium-ion and lead-acid batteries
- Max. charging/discharging current of 125A / 140A
- Separate generator port
- Up to 16 units in parallel
- Single-phase / unbalanced 3-phase support
- Wi-Fi, RS485 and CAN communication
- LCD + LED display
- Smart cooling
- NRS 097-2-1 compliant
- Suitable for residential and small business solar systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LuxPower |
| Model | SNA 6000W |
| Inverter Type | Off-Grid / Hybrid Inverter |
| Rated Output Power | 6,000W |
| Max. PV Array Power | 8,000W |
| Rated PV Input Voltage | 320V |
| MPPT Trackers | 2 |
| MPPT Voltage Range | 120–385V |
| Start-up Voltage | 100V |
| Max. PV Input Current | 17A + 17A |
| Max. PV Short-Circuit Current | 25A + 25A |
| Battery Type | Lithium-ion / Lead-Acid |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 38.4–60V |
| Max. Charge / Discharge Current | 125A / 140A |
| Max. Charge / Discharge Power | 6,000W |
| Recommended Battery Capacity | 200Ah per inverter |
| Max. MPPT Efficiency | 99% |
| Max. Efficiency | 93% |
| Max. Charging Efficiency | 93% |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Relative Humidity | 5%–95% |
| Communication | LCD + LED, RS485, Wi-Fi, CAN |
| Cooling | Smart Cooling |
| Topology | Transformer-less |
| Maximum Altitude | <2,000m |
| Noise Level | <50dB |
| Weight | 17kg |
| Dimensions | 15 × 35 × 53cm |
| Warranty | 2 Years |
| Standards | IEC 62109-1, IEC 61000, IEC 62040 / EN 62040, NRS 097-2-1 |
LuxPower 6kW Inverter South Africa
The LuxPower 6kW Eco Hybrid Inverter is ideal for homeowners and businesses looking for reliable solar backup power and flexible energy management. It can prioritise solar, battery or utility power depending on the selected operating mode and can function as a backup alternative to a diesel generator.
Its dual MPPT design, 48V lithium battery compatibility and smart monitoring make it a practical choice for home solar systems, backup power systems and off-grid solar installations in South Africa.
Warranty
2-Year Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master Electrician. A valid Electrical Certificate of Compliance (COC) must be issued, and the installation must comply with SANS 10142 and applicable South African electrical requirements.
Warranty claims without installation photos, a valid COC and proof of qualified installation may be rejected.
